centre diff lock

Post by mudmagnet » Sat Oct 24, 2015 2:33 pm

Land Rover decided not to supply a centre diff lock (CDL) on discovery 2',s but on some transfer boxes the CDL was still there but without any linkage to operate it,

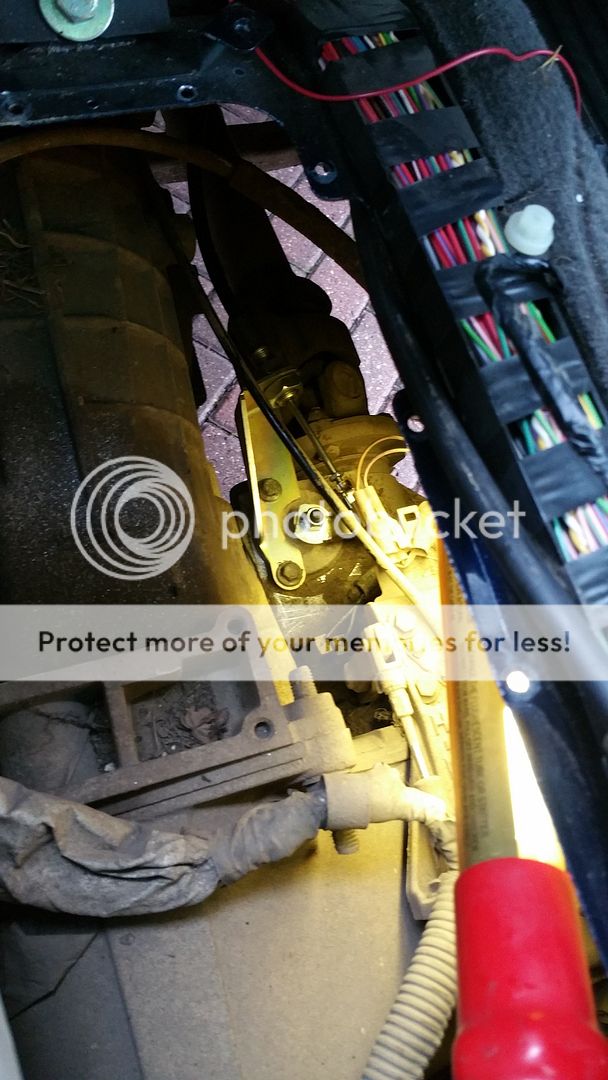

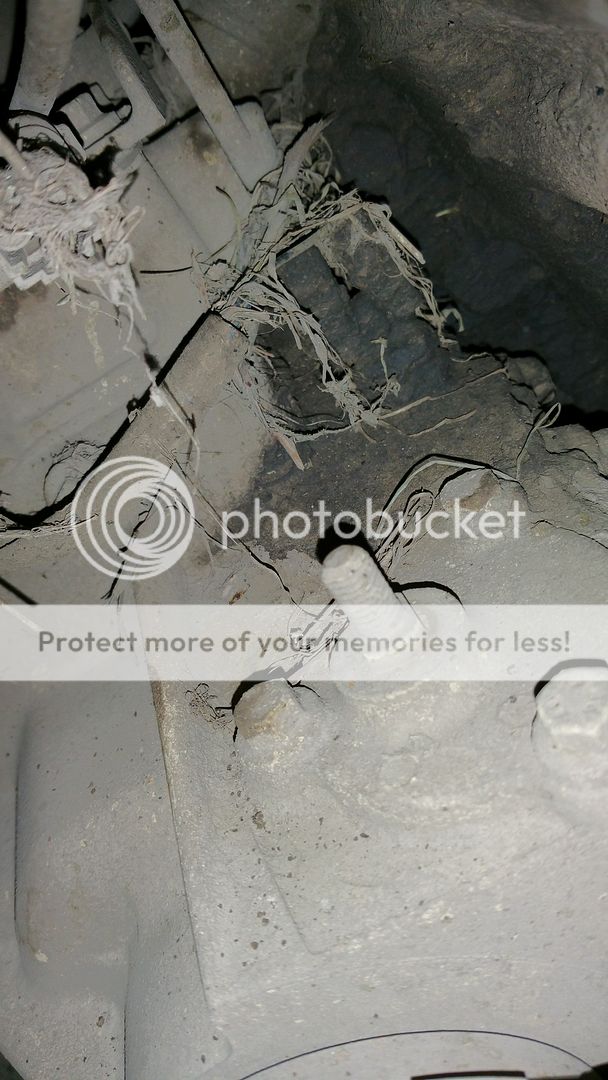

so after looking under mine and finding that I did have the spigot I decided to buy an Ashcroft transmissions CDL linkage kit which is a new diff lock lever and cable and bracket to fit the transfer box

yes I have CDL in my transfer box :yipi:



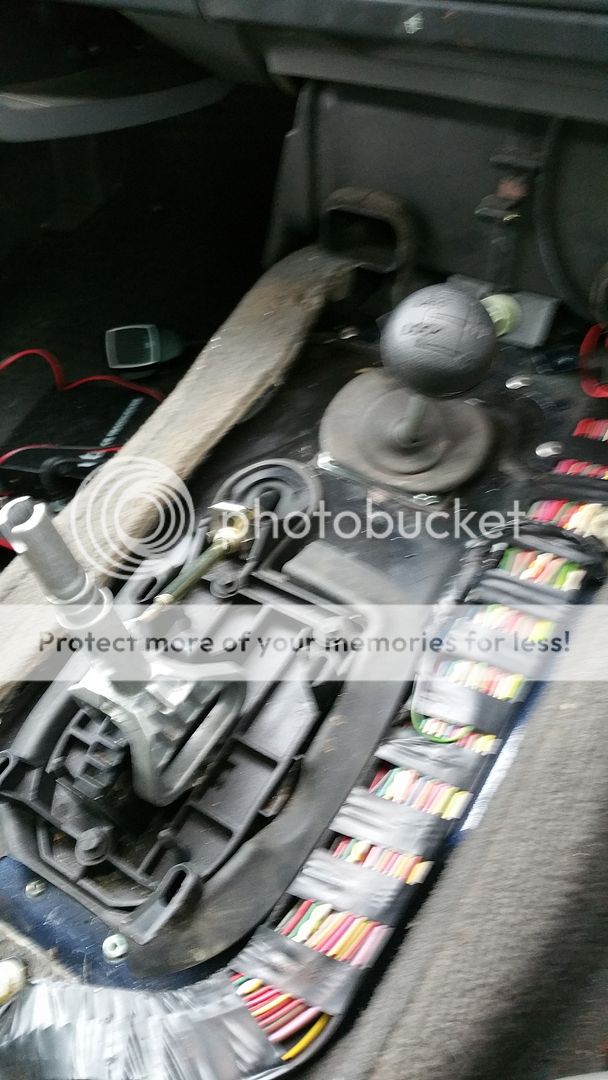

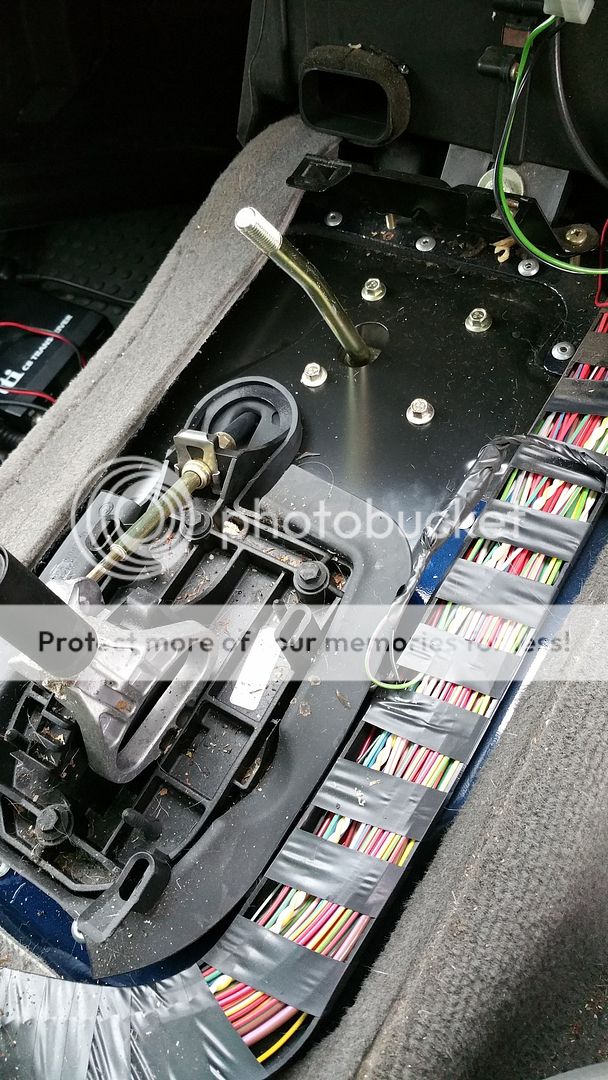

so a strip out of the centre console and drill all the rivets out of the transmission tunnel cover then I can fit the new bracket and cable



then put it all back together and see if it works, unfortunately the Ashcroft kit comes with a Defender gear knob which is different to a Disco one but I will have to get the correct one later



and it all works :yipi: Land Rover even had the diff lock light still wired in even though you couldn't use it



so now I have 3 options
1 traction control only
2 CDL and TC as long as you engage diff lock after the car is started
3 CDL on its own if you engage diff lock before the car is started

im a happy bunny now :D
